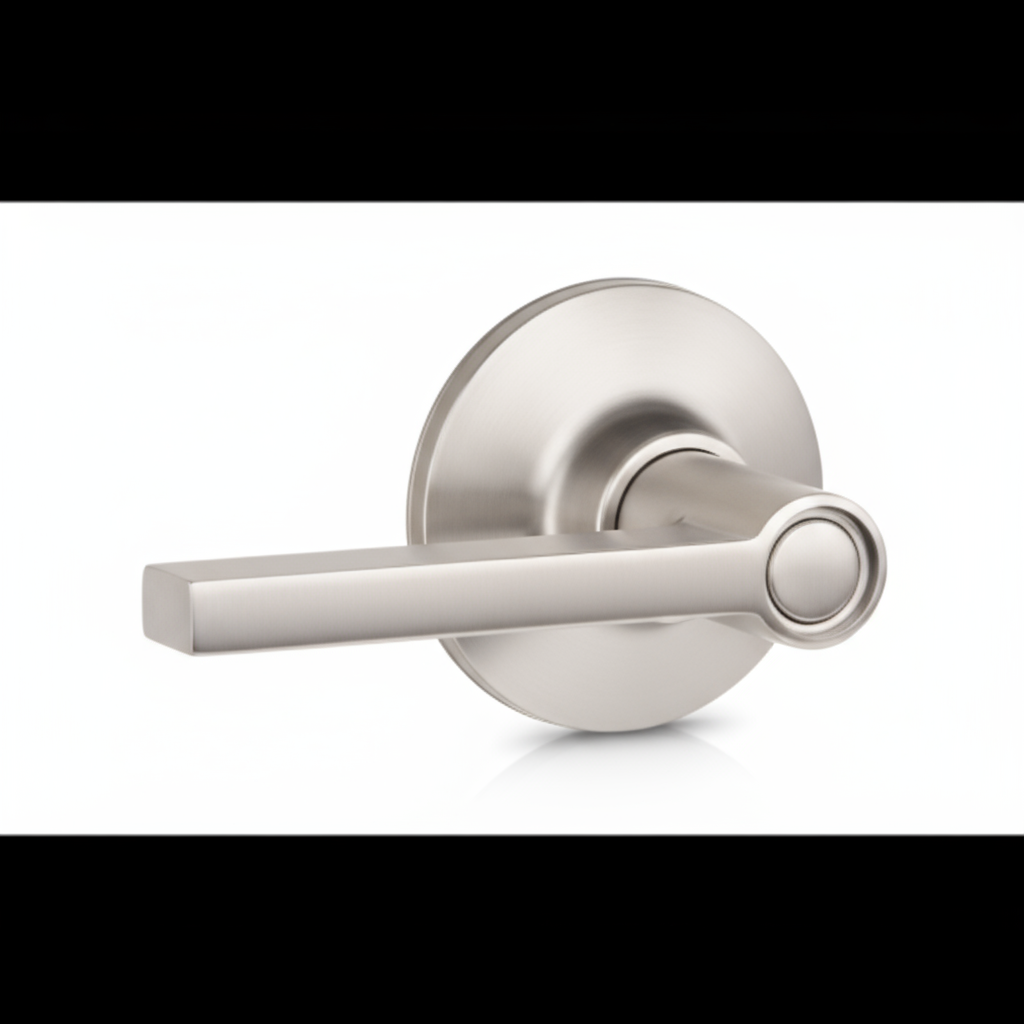

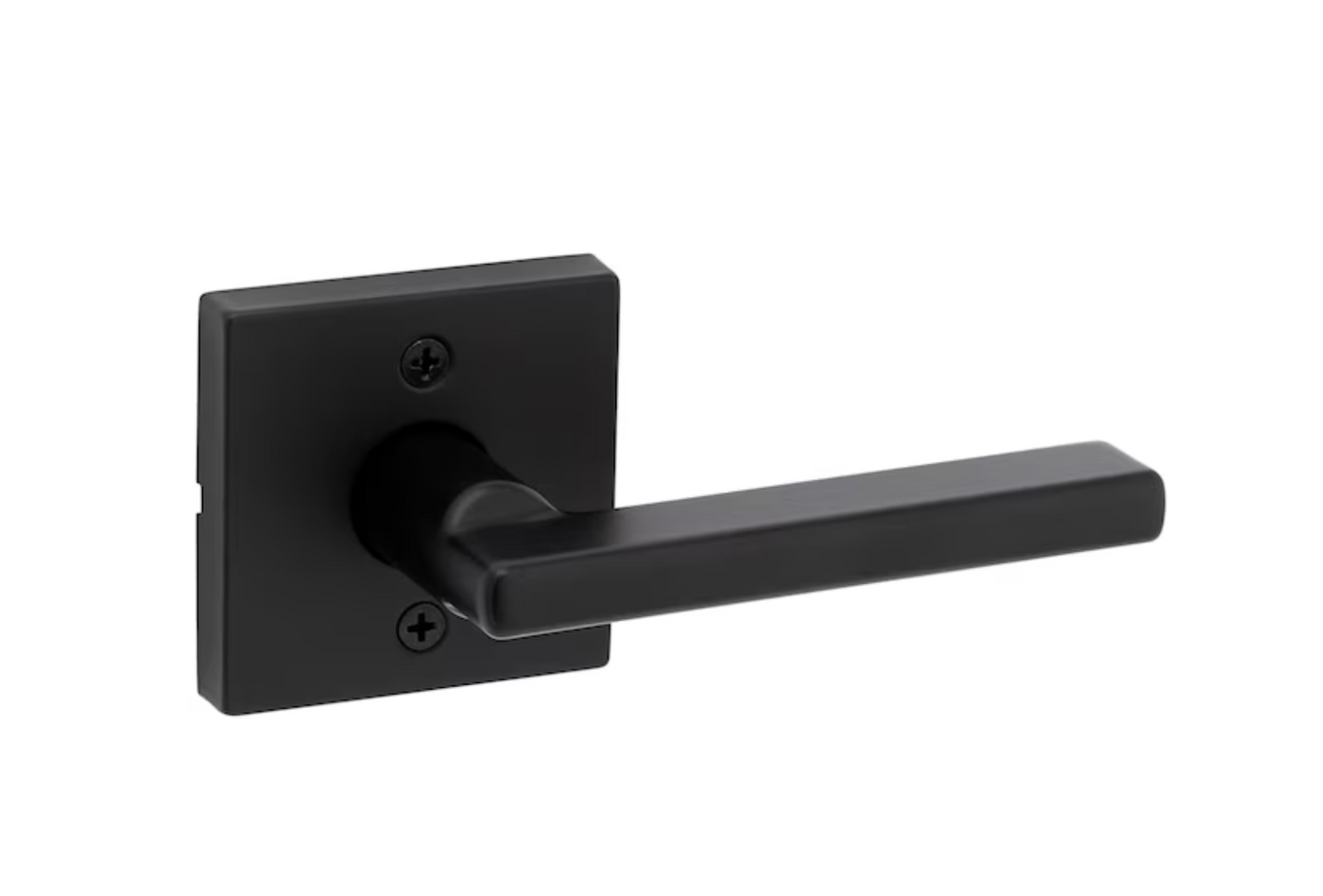

Lockset

Features:

• ANSI/BHMA A156.2 Grade 3
• All metal construction for long lasting performance
• Reversible lever allows for use as both right-hand and left-hand levers
• Easy installation makes for a one-person project
• Manufacturer offers a limited lifetime mechanical and 5 year finish warranty

Specifications:

• Door Thickness: 1-3/8" to 1-3/4"
• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Handle Length: 4-7/16"
• Handle Projection: 2-5/8"
• Trim Height: 2-5/8"
• Trim Width: 5-5/16"
• Handing: Reversible
